In the typical American home, you will find 75 electrical outlets. Though the majority of them are typical three-prong, 15-amp outlets, there are a number of different choices. If you would like to operate in electrical building and maintenance, you’ll have to comprehend every one of those commonly used electric outlets and their software. In Coyne College at Chicago, we’ve got electric plans to teach you all you want to learn for a career as an electrician.
The Most Frequent American Outlets
There are six main kinds of outlets you may expect to find in many houses. While not every home has all these, almost all have at least a few of those choices. Anyone working in the electric field has to be somewhat familiar with all these common kinds to fix electrical issues with outlets.
This sort of outlet is extremely common in older homes but nearly non-existent in brand new buildings. It’s a 15-amp, 125-volt outlet that requires two wires within an ungrounded circuit. As it lacks a ground cable, it’s less secure than the premium three-prong alternative. What’s more, it’s rapidly becoming obsolete because of modern building codes. Expect to need to replace them in renovation tasks.

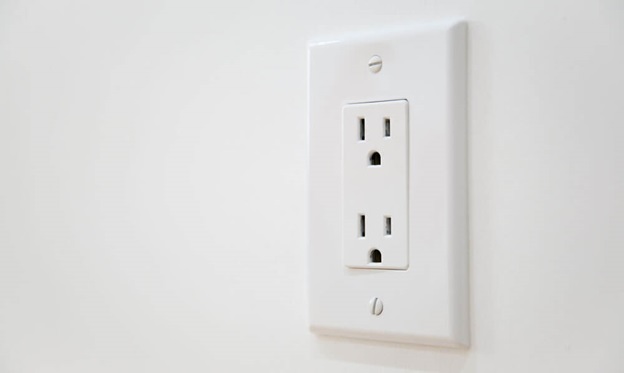

This is certainly the most frequent outlet in contemporary houses. It replaced the two-prong option because the go-to outlet for overall electric use. Additionally, it is a 15-amp, 125-volt outlet however, it’sa third prong for grounding. It’s much safer than the old version and can be compliant with all modern building codes.
Ground fault circuit interrupter outlets are a remarkably secure option of outlet. It’s frequently utilized in kitchens, bathrooms and anyplace the outlet might be near water. The outlet tracks the electric flow in the circuit. In the event the present spikes or escapes, the GFCI outlet will disrupt the present to prevent a hazard. The outlet contains two buttons for both analyzing and resetting the interrupter.
An arc fault circuit interrupter appears very like a GFCI outlet. Its goal is to shield against arcs when power jumps from 1 cable to another. Arcing is a fire hazard, therefore this typica of circuit security is crucial. In modern structure, AFCI circuits are built to the breaker. But on older houses, this technology could be inserted with a unique outlet.
This manner of outlet includes an integrated LED which may function as a nightlight. A lot of men and women find this handy for young kids or for supplying minimal light in toilets and other areas that might have to be achieved at nighttime.
These outlets have USB charging interfaces integrated in to them. They’re growing very popular as a result of the incidence of USB-charged tablets tablets and other devices. The important benefit is the charging cable doesn’t occupy an outlet.
